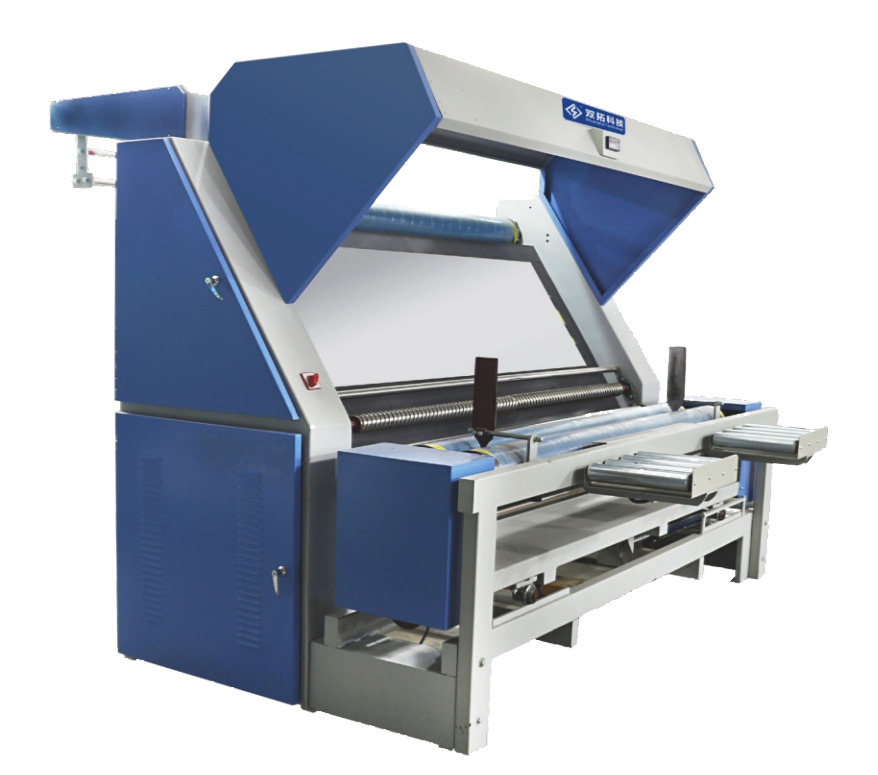

Standard inspection machine
Inspection machine for any type of fabric.
With wide lighted inspection table, automatic edge alignment,
adjustable roll hardness and adjustable fabric tension
The inspection, winding machine, allows a check of the fabric quality; this machine can be interfaced with the exit of after-finish machine, without stop it.
The sensitive system of synchronization and the motorization of all the rolls of delay fabric, the machine is excellently for the verification of elastic fabrics.
Besides, the management from PLC interfaced to inverter, the operator can modify in real time tension fabric and hardness roll.
Technical characteristics:
Roller width:1800mm-2400mm, above 2400mm support customization
Total equipment power: 3HP
Speed: 0-110m per minute
Rolls up to diameter: 450mm
Equipped with meter counter.
lighted inspection table.
Fabric edge alignment
Optional electronic scale and blade.
